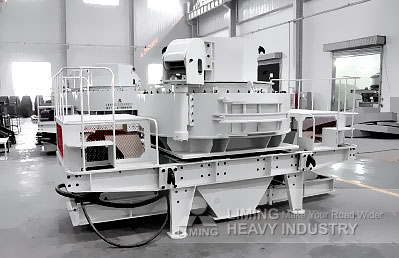

VSI Vertical Shaft Impact Crusher

liming
VSI Vertical shaft Impact crusherType: tertiary crusher
Input Size: 0-50mm
Processed Materials:
Iron ore, copper ore, gold and silver ore, zinc ore, manganese ore, limestone、granite、basalt、river stone、coal gangue、quartz
Applications:
Mechanism sand, bituminous concrete, metal mine, aggregates shaping
VSI is equipped with double pump oil lubrication system and work on stone to stone crushing theory so the wear of components is minimum hence lower maintenance results lower operating cost in comparison to other similar stone breakers. It is easy to use due to simple operation mechanism.
Model VSI7611 VSI8518 VSI9526
Capacity (t/h) Center and Ring feeding 120-180 200-260 300-380
Center feeding 60-90 100-130 150-190
Max Feed Size (mm) Soft material <35 <40 <45
Hard material <30 <35 <40
Rotation speed (r/min) 1700-1890 1520-1690 1360-1510
Power for double motor (kW) 110 180 264
Overall Dimension L×W×H (mm) 4100×2250×2285 4140×2280×2425 4560×2450×2780
Weight (t) 7.8 10.3 16
Power Source 380v 50Hz
Vibrating Sensor Inspect scope: 0.1-20mm/s adjusted continuously
Lubrication hydrauli pressure station Power for double oil pump 2×0.31kW
Overall dimension L×W×H(mm) 820×520×1270
Power for oil box heater 2 kW
