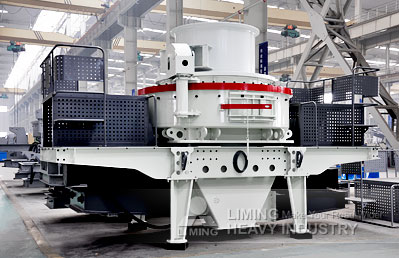

VSI 5X Vertical Shaft Impact Crusher

liming
VSI5X Vertical Shaft Impact CrusherType: tertiary crusher
Input Size: 0-50mm
Processed Materials:
Iron ore, copper ore, gold and silver ore, zinc ore, manganese ore, limestone, granite, basalt, river stone, coal gangue, quartz
Applications:
Mechanism sand, bituminous concrete, metal mine, aggregates shaping
It is also applicable to crush various stones with different hardness in medium and fine crushing area, such as iron ore, non ferrous metal, emery, bauxite, quartz sand, basalt, etc.
model VSI5X7615 VSI5X8522 VSI5X9532 VSI5X1145
Throughput capacity (t/h) Center and Ring feeding 150~280 240~380 350~540 500~640
Center feeding 70~140 120~190 180~280 250~360
Max. Feed Size (mm) Soft material <35 <40 <45 <50
Hard material <30 <35 <40 <45
Rotation speed (r/min) 1700~1900 1500~1700 1300~1510 1100~1310
Power of double motor (KW) 150 220 320 440
Overall dimension L×W×H (mm) 4100×2330×2300 4140×2500×2700 4560×2600×2900 5000×2790×3320
Weight (t) 8.6 11.8 17.5 27.5
Power source 380v，50Hz
Thin oil lubrication station Power for double oil pump 2 x 0.37 KW
Safety To make sure the supply of oil with double oil pump, working without oil, temperature when water cools, start the motor by heating it in winter.
Power for oil box heater 2 KW
Overall dimension L×W×H (mm) 820×520×1270
