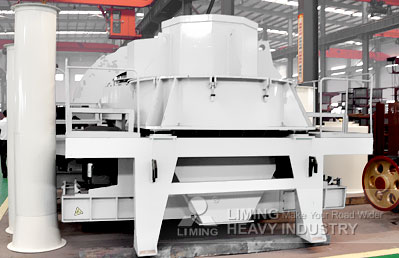

PCL Vertical Shaft Impact Crusher

liming
PCL Vertical shaft Impact crusherType: tertiary crusher
Input Size: 0-50mm
Processed Materials:
Iron ore, copper ore, gold and silver ore, zinc ore, manganese ore, limestone, granite, basalt, river stone, coal gangue, quartz
Applications:
Mechanism sand, bituminous concrete, metal mine, aggregates shaping
PCL vertical shaft impact crusher is widely used in all kinds of minerals, cement, refractory material, carborundum grain, glass raw material, construction sand, stone stock and all kinds of metallurgy slag, especially carborundum, sintered bauxite, magnesite, such materials are with features of very hard and anticorrosion. And Sand Making Machine is more productive than other kind of crushers.
Model Rotate speed of impeller (r/min) Max feed size (mm) Power (kW) Weight (including motor) (t) Capacity (t/h) Overall dimensions (mm)
PCL600 2000-2600 30 2×30 5.6 10-30 2800×1550×2030
PCL750 1600-2100 35 2×45 7.5 30-50 3300×1800×2440
PCL900 1300-1700 40 2×55 12 50-80 3750×2120×2660
PCL1050 1100-1450 45 2×110 16 70-120 4480×2450×2906
PCL1250 950-1200 45 2×132 22 80-150 4563×2650×3176
PCL1350 900-1200 50 2×160 26 120-200 5340×2940×3650
