Input Size: 38-55 mm
Processed Materials:
Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, manganese ore,iron ore, quartz, active carbon, carbon black, ceramic, clinker, ect
Applications:
Cement, coal, power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics.
Processed Materials:
Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, manganese ore,iron ore, quartz, active carbon, carbon black, ceramic, clinker, ect
Applications:
Cement, coal, power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics.

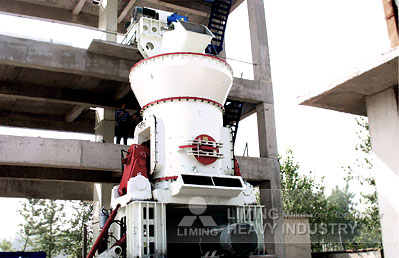

LM series vertical milling machine can be widely used in such industries as cement, power, metallurgy, chemical industry, non-metallic mineral. It is used to grind granular and powdered materials into powder with required fineness.
Contents|Data//Model | LM130K | LM150K | LM170K | LM190K | LM220K | LM240K | |
Disc Dia. (mm) | 1300 | 1500 | 1700 | 1900 | 2200 | 2400 | |
Capacity (t/h) | 10~30 | 13~40 | 18~57 | 23~72 | 36~114 | 41~128 | |
Output fineness | micron | 170~45 | 170~45 | 170~45 | 170~45 | 170~45 | 170~45 |
mesh | 80~325 | 80~325 | 80~325 | 80~325 | 80~325 | 80~325 | |
Product moisture | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | |
Max.input size (mm) | <38 | <40 | <42 | <45 | <50 | <55 | |
Best input moistrure | <4% | <4% | <4% | <4% | <4% | <4% | |
input moistrure(drying required) | <15% | <15% | <15% | <15% | <15% | <15% | |
Inlet air temperature (℃) | <350 | <350 | <350 | <350 | <350 | <350 | |
Outlet air temperature (℃) | 70~95 | 70~95 | 70~95 | 70~95 | 70~95 | 70~95 | |
Main mill power (KW) | 185~220 | 250~280 | 355~400 | 450~500 | 710~800 | 800~900 | |
Dimension | Lmm | 3500 | 4200 | 4700 | 8500 | 10200 | 11700 |
Wmm | 3400 | 3900 | 4500 | 5600 | 6700 | 7700 | |
Gmm | 5800 | 7100 | 8300 | 8800 | 10600 | 12200 | |
Weight (t) | 48 | 75 | 90 | 100 | 125 | 160 |
