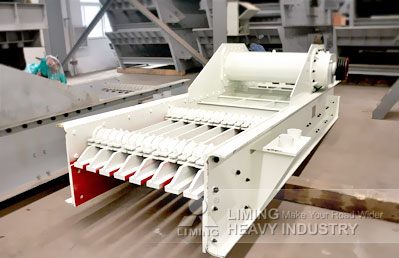

Vibrating Feeder

Vibrating FeederType: Necessary Equipment
Input Size: 0-1000mm
Processed Materials: River Gravel, Granite, Basalt, Quartz, Iron ore, Diabase, Limestone, Coal Gangueetc.
Applications: Aggregate Field, Concrete Mixing Plant, Dry Motar Plant Desulfurization, Quartz Sand etc.
We manufacture professional quality Vibrating feeders used in industrial, mining, construction material, silicate and chemical plants. Our feeders are manufactured out of the most optimum quality raw materials.
Model Feed chute size (mm) Max. feeding size (mm) Handling capacity (t/h) Power (kW) Overall dimension (mm) Weight (including motor) (kgs)
GZD-960×3800 960×3800 500 90-160 11 3880×2240×1880 3980
GZD-1100×4200 1100×4200 600 120-240 15 4300×2450×2010 4170
GZD-1300×4900 1300×4900 600 150-400 18.5 4980×2705×2050 5200
GZD-1500×6000 1500×6000 800 460-575 30 6160×2920×2295 9000
