Type: Mineral Ore Powder MakingInput Size: 15-20 mm
Processed Materials:
Limestone, calcite, barite, dolomite, potassium feldspar, bentonite, medical stone, rock phosphate, manganese ore, iron ore, quartz, active carbon, carbon black, ceramic, coal, ect.
Applications:
Superfine dry powder of none-metal ores such as calcite, marble, limestone, coarse whiting, talc, barite and dolomite and so on.
Processed Materials:
Limestone, calcite, barite, dolomite, potassium feldspar, bentonite, medical stone, rock phosphate, manganese ore, iron ore, quartz, active carbon, carbon black, ceramic, coal, ect.
Applications:
Superfine dry powder of none-metal ores such as calcite, marble, limestone, coarse whiting, talc, barite and dolomite and so on.

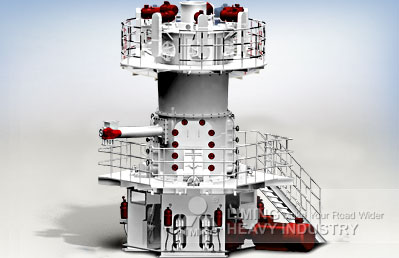

LUM series superfine vertical roller grinding mills can be widely used to process the superfine dry powder of none-metal ores such as calcite, marble, limestone, coarse whiting, talc, barite and dolomite and so on.
| Model Specification Name | LUM1125X | LUM1232X | LUM1436X |
| Intermediate diameter of the millstone （mm） | 1100 | 1200 | 1400 |
| Quantity of the rollers（piece） | 3 | 3 | 3 |
| Granularity of the feeding material D90（mm） | < 10 Max. 15mm | < 10 Max.15mm | < 10 Max.20mm |
| Moisture of the feeding material | < 3% | ||
| Capacity （t/h） | 5~14 | 7~16 | 9~18 |
| Fineness（mm） | Generally in 0.045-0.02, the finest can reach 0.01. | ||
| Power of the main motor（KW） | 250 | 315 | 355 |
| Power of multiple powder concentrator & quantity | 15KW×5 | 15KW×7 | 15KW×7 |
