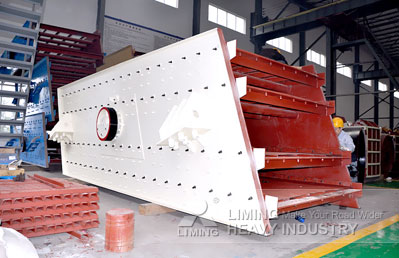

Vibrating Screen

Vibrating ScreenType: Necessary Equipment
Input Size: 0-100mm
Processed Materials: River Gravel, Granite, Basalt, Quartz, Iron ore, Diabase, Limestone, Coal Gangueetc.
Applications: Aggregate Field, Concrete Mixing Plant, Dry Motar Plant Desulfurization, Quartz Sand etc.
We have a wide range of Vibrating screens suitable for various screening application.Vibrating Screens are used to separate materials into various sizes for further processing in Crusher.
Model Screen size (mm) No. of Layer Screen mesh (mm) Max. feed size (mm) Handling capacity (t/h) Motor power (kW) Vibrating frequency (r/min) Double swing (mm)
3YZS1237 3700×1200 3 3-80 100 10-80 11 750-950 5-9
3YZS1548 4800×1500 3 3-80 100 30-200 15 750-950 5-9
2YZS1848 4800×1800 2 3-80 100 50-250 18.5 750-950 5-9
3YZS1848 4800×1800 3 3-80 100 50-250 18.5 750-950 5-9
4YZS1848 4800×1800 4 3-80 100 50-250 18.5 750-950 5-9
3YZS1860 6000×1800 3 3-80 100 60-300 22 750-950 5-9
4YZS1860 6000×1800 4 3-80 100 60-300 30 750-950 5-9
2YZS2460 6000×2400 2 5-80 100 100-500 30 700-900 5-9
3YZS2460 6000×2400 3 5-80 100 100-500 37 700-900 5-9
4YZS2460 6000×2400 4 5-80 100 100-500 37 700-900 5-9
Please Feel free to give your inquiry in the form below.We will reply you in 24 hours.
