Input Size: 0-200mm
Processed Materials: Iron ore, copper ore, gold ore, manganese ore,limestone, granite, basalt, andesite, quartz, silica, gypsum, volcanic rock, marble, river stone, gravel, coal etc
Applications: Secondary medium & fine crusher is widely used in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.

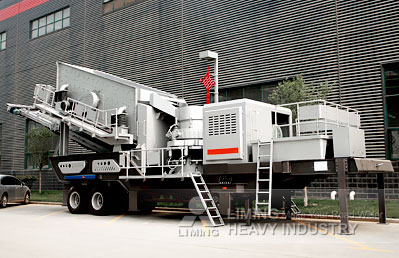

The automatic-portable conveyor for return material make the installation of the whole plant quite easy. The mobile crushing&screening plant can be customerized in design.It can be manufactured either crushing first or conversely.
Technical Data//Model | Y3S1848CS75 | Y3S1860CS160 | Y3S1860HP220 | |
Transportation size(mm) | 12000x2800x4300 | 13400x2820x4350 | 13400x2820x4350 | |
Weight(t) | 28 | 46 | 42 | |
Tire Configuration | Dualaxial | Triaxial | Triaxial | |
Cone Crusher | CS75 | CS160 | HP220 | |
Discharging Belt Conveyor | B800×6M | B800×8M | B800×8M | |
Vibrating Screen | 3YZS1848 | 3YZS1860 | 3YZS1860 | |
Electric control | standard | control box + control panel | control box + control panel | control box + control panel |
Optional | Control box + LCD | Control box + LCD | Control box + LCD | |
Hydraulic leg | standard | 4 | 4 | 4 |
optional | 2 | 2 | 2 | |
Hydraulic cycliner | standard | 0 | 0 | 0 |
Optional | 2 | 2 | 2 | |
Genset(optional) (Kw) | 180 | 320 | 440 |
