Type: Primary CrusherInput Size: 0-700mm
Processed Materials: Iron ore, copper ore, gold ore , manganese ore,limestone, granite, basalt, andesite, quartz, silica, gypsum, volcanic rock, marble, river stone, gravel, coal etc.
Applications: Primary coarse & medium crusher in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.

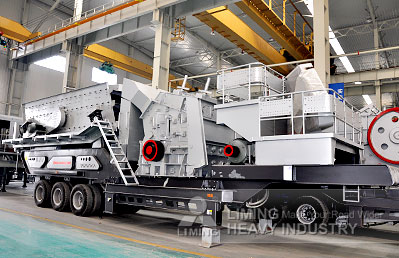

The mobile impact crushers are used for soft to medium-hard natural stone and for the reprocessing of residual construction materials. What is important today, in addition to the quality of the end product, is environmental and cost awareness, availability and a wide field of application. The series of machines unite all these requirements. In the process, they guarantee an end product that represents the high demands of concrete and asphalt granulation standards with regard to grain shape, grain distribution and cleanliness.
| Technical Data//Model | YG938 FW1214Ⅱ | YG1142 FW315Ⅱ | YG1349 FW318Ⅱ | |
| Transportation size(mm) | 11900×2650×3850 | 13500×2780×4150 | 15200×2950×4300 | |
| Weight(t) | 41 | 52 | 61 | |
| Tire Configuration | Dualaxial | Triaxial | Triaxial | |
| Impact Crusher | PFW-1214Ⅱ | PFW-1315Ⅱ | PFW-1318Ⅱ | |
| The Maximum Feeding Size(mm) | 500 | 600 | 700 | |
| Capacity(t/h) | 130~200 | 180~320 | 240~400 | |
| Vibrating Feeder | GZD960×3800 | GZD1100×4200 | GZD1300×4900 | |
| Main Belt Conveyor | B800×8.5M | B1000×9M | B1200×9.5M | |
| Side Belt Conveyor (optional) | B450×3M | B500×3.5M | B650×4M | |
| Electric control | standard | control box + control panel | control box + control panel | control box + control panel |
| optional | Control box + LCD | Control box + LCD | Control box + LCD | |
| Hydraulic leg | standard | 4 | 4 | 4 |
| optional | 2 | 2 | 2 | |
| Hydraulic cyclinder | standard | 4 | 4 | 4 |
| optional | 5 | 5 | 5 | |
| Genset (optional) (Kw) | 270 | 380 | 440 | |
| Iron Separator (optional)(Kw) | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-12 | |
