Type: Primary CrusherInput Size: 0-1000mm
Processed Materials:
Iron ore, copper ore, gold ore, manganese ore,limestone, granite, basalt, andesite, quartz, silica, gypsum, volcanic rock, marble, river stone, gravel, coal etc.
Applications:
Primary crusher in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.

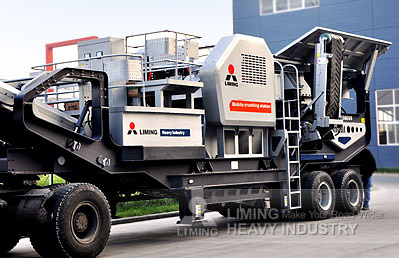

The mobile primary jaw crushers are characterised by their uncompromising design and sturdiness. The outstanding overall performance of the machines results from the harmonious interplay of all components. In this way, the series of machine provide a variety of innovative solutions with regard to efficiency, availability, versatility and, last but not least, the quality of the end product.
| Technical Data//Model | YG938E69 | YG1142E710 | YG1349E912 | |
| Transportation size(mm) | 11900×2550×3650 | 13500×2550×4300 | 15200×2950×4450 | |
| Weight(t) | 35 | 52 | 80 | |
| Tire Configuration | Dualaxial | Triaxial | Triaxial | |
| Jaw Crusher | PE600×900 | PE750×1060 | PE900×1200 | |
| The Maximum Feeding Size(mm) | 480 | 630 | 750 | |
| Discharge Opening Size(mm) | 65~160 | 80~140 | 100~200 | |
| Capacity(t/h) | 90~180 | 110~320 | 220~450 | |
| Vibrating Feeder | GZD960×3800 | GZD1100×4200 | GZD1300×4900 | |
| Main Belt Conveyor | B800×8.5M | B1000×9M | B1200×9.5M | |
| Side Belt Conveyor (optional) | B450×3M | B500×3.5M | B650×4M | |
| Electric control | standard | control box + control panel | control box + control panel | control box + control panel |
| optional | Control box + LCD | Control box + LCD | Control box + LCD | |
| Hydraulic leg | standard | 4 | 4 | 4 |
| optional | 2 | 2 | 2 | |
| Hydraulic cylinder | standard | 4 | 4 | 4 |
| optional | 5 | 5 | 5 | |
| Genset (optional)(Kw) | 180 | 250 | 250 | |
| Iron Separator (optional) (Kw) | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-12 | |
