HST Hydraulic Cone Crusher

liming

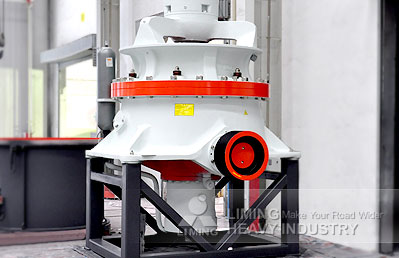

HST Single Cylinder Hydraulic Cone CrusherType: Secondary Crushing
Input Size: 38-560MM
Processed Materials:
Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt,mine ore,quartz,diabase,etc. (For hard stone)
Applications:
Aggregate field,concrete mixing plant,dry mortar plant desulfurization,quartz sand,etc.
It applies to the primary and secondary crushing of various of mines and rocks, the Protodyakonov hardness of which is f=5-16, such as iron ore, nonferrous ore, granite, limestone, quartzite ore, sandstone, pebble and so on.
Model Cavities Maximum feeding size(mm) Minimum discharging size(mm) Maximum install power(kW)
HST100 S1 Extra Coarse 240 22 90
S2 Medium Coarse 200 19
H1 Fine 135 10
H2 Medium Fine 65 8
H3 Extra Fine 38 4
HST160 S1 Extra Coarse 360 25 160
S2 Medium Coarse 300 22
S3 Coarse 235 19
H1 Fine 185 13
H2 Medium Fine 90 10
H3 Extra Fine 50 6
HST250 S1 Extra Coarse 450 35 250
S2 Medium Coarse 400 29
S3 Coarse 300 25
H1 Fine 215 16
H2 Medium Fine 110 13
H3 Extra Fine 70 8
HST315 S1 Extra Coarse 560 41 315
S2 Medium Coarse 500 38
H1 Fine 275 16
H2 Medium Fine 135 16
H3 Extra Fine 65 13
