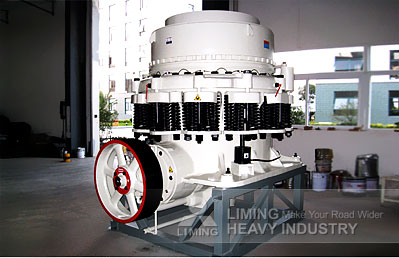

CS Series Cone Crusher

liming
CS High-Efficiency Cone CrusherType: Secondary Crushing
Input Size: 83-369MM
Processed Materials:
Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, mine ore, quartz,diabase,etc. (for hard stone)
Applications:
Aggregate field,concrete mixing plant,dry mortar plant desulfurization,quartz sand,etc.
The design was as simple as possible with features that were user friendly, and craftsmen with many years of experience built the frames and components for ruggedness and durability with American steel and pride in their work.
Standard
Model Dia. mm (feet) Cavity Feed Opening Outlet Setting (mm) Shaft Speed (r/min) Power (kw) Capacity (t/h)
Closing Side (mm) Open Side (mm)
CSB75 900 (3′) Fine 83 102 9-22 580 75 45-91
Coarse 159 175 13-38 59-163
CSB160 1295 (4 1/4′) Fine 109 137 13-31 485 185 109-181
Medium 188 210 16-38 132-253
Coarse 216 241 19-51 172-349
CSB240 1650 (5 1/2′) Fine 188 209 16-38 485 240 181-327
Medium 213 241 22-51 258-417
Coarse 241 268 25-64 299-635
CSB315 2134 (7′) Fine 253 278 19-38 435 315 381-726
Medium 303 334 25-51 608-998
Coarse 334 369 31-64 789-1270

Short Head

Model Dia. mm (feet) Cavity Feed Opening Outlet Setting (mm) Shaft Speed (r/min) Power (kw) Capacity (t/hour)
Closing Side (mm) Open Side (mm)
CSD75 914 (3′) Fine 13 41 3-13 580 75 27-90
Coarse 33 60 3-16 27-100
CSD160 1295 (4 1/4′) Fine 29 64 3-16 485 160 36-163
Medium 54 89 6-16 82-163
Coarse 70 105 10-25 109-227
CSD240 1676 (5 1/2′) Fine 35 70 5-13 485 240 90-209
Medium 54 89 6-19 136-281
Coarse 98 133 10-25 190-336
CSD315 2134 (7′) Fine 51 105 5-16 435 315 190-408
Medium 95 133 10-19 354-508
Coarse 127 178 13-25 454-599
