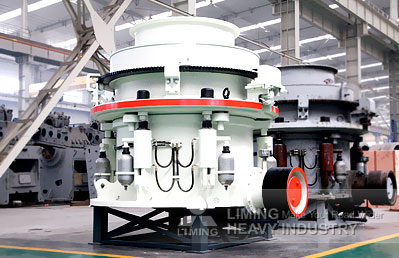

HPT Hydraulic Cone Crusher

HPT Series High-Efficiency Hydraulic Cone CrusherType: Secondary Crushing
Input Size: 76-320MM
Processed Materials
Iron ore, copper ore, gold ore, manganese ore, river stone, gravel,granite,basalt,mine ore,quartz,diabase,etc. (for hard stone)
Aggregate field,concrete mixing plant,dry mortar plant desulfurization,quartz sand,etc.
Cone crusher not only improves the production capacity and crushing efficiency, but also widens applying area, hardness range of materials from limestone to basalt. It has a great crushing performance in the work of medium-size crushing, fine crushing and super fine crushing. The crusher is the improved type of spring cone crusher and can be used to replace ordinary hydraulic cone crusher in the field of mining and construction. It is the most ideal equipment for large stone crushing factory and mining industry.
Type Cavity (coarse/fine) Open Side Setting(mm) Close Side Settting(mm) Min. discharge size (mm) Capacity (t/h) Power (kW)
HPT300 C 240 210 20 190-380 250
M 190 150 16 175-320
F 145 105 13 110-260
EF 120 80 10 110-240
HPT500 C 320 290 30 380-700 400
EF 150 95 13 200-430
