Input Size: 0-50mm
Processed Materials: Iron ore, copper ore, gold ore and silver ore, zinc ore, manganese ore, limestone、granite、basalt、river stone、coal gangue、quartz
Applications: Mechanism sand, bituminous concrete, metal mine, aggregates shaping

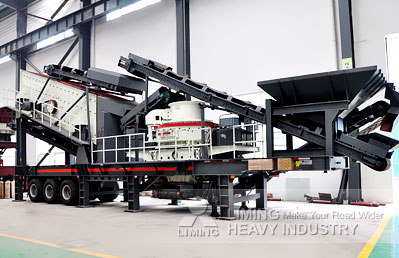

Mobile VSI Crushers are ideal for tertiary crushing and screening applications in quarrying, mining, concrete recycling, infrastructure and construction industries. It is especially used to process raw material to excellent aggregate and sand for railway, highway, freeway and building construction.
Technical Data//Model | Y3S1848V81 | Y3S1860V92 | Y3S2160V140 | |
Transportation size (mm) | 13500×2830×4350 | 15600×2830×4350 | 15600×3100×4480 | |
Weight(t) | 31 | 36 | 49 | |
Tire Configuration | Dualaxial | Dualaxial | Triaxial | |
Vertical Shaft Impact Crusher | VSI-8518 | VSI-9526 | VSI-1140 | |
The Maximum Feeding Size(mm) | 35 | 40 | 45 | |
Capacity(T/h) | 100-260 | 150-380 | 225-520 | |
Belt Conveyor Under Vibrating Screen | B800×7M | B800×8M | B1000×8M | |
Self-loaded Belt Conveyor | B800×2.2M | B800×2.5M | B1000×2.5M | |
Vibrating Screen | 3YZS1848 | 3YZS1860 | 3YZS2160 | |
Electric control | standard | control box + control panel | control box + control panel | control box + control panel |
Optional | Control box + LCD | Control box + LCD | Control box + LCD | |
Hydrau lic leg | standard | 4 | 4 | 4 |
Optional | 2 | 2 | 2 | |
Hydraulic cyclinder | standard | 0 | 0 | 0 |
optional | 2 | 2 | 2 |
