Input Size: 560-800 mm
Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, minerals, quartz, diabase, etc.
Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.

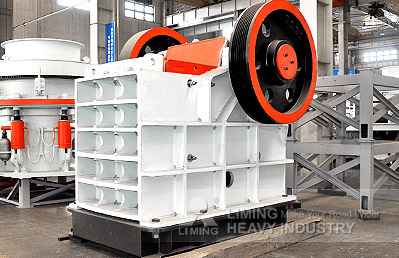

It is based on the design concept of high input – high output, integrating the characteristics of low power – high productivity. Practice has proved that HJ series jaw crusher, with its excellent performance, reliable quality and high cost-effective, has won the trust of customers around the world, being an ideal upgrade alternative of the traditional jaw crusher.
|Input opening size (mm)||650×980||800×1100||950×1250|
|Max feeding particle size (mm)||560||660||800|
|Adjustment range of discharging (mm)||100-200||100-200||125-225|
|Rotation speed of eccentric shaft (r/min)||270||260||230|
|Motor power (kW)||90/110||110/132||132/160|
|Overall dimension (mm)||2470×2000×2180||2875×2472×2530||3320×2600×3120|
Diagram 2 supporting equipments parameter
|Electric cabinet||90 /110 Kw||110/132Kw||132/160Kw|
Diagram 3 capacity data
